JAY PARTS BUSHING KIT FRONT A-ARMS POLARIS SPORTSMAN SCRAMBLER 850 1000 - JP0022

JAY PARTS Bushing & Sleeves Kit A‐Arms front - POLARIS Scrambler & Sportsman 850/1000

The sleeves are made of vacuum-hardened and ground stainless steel, only the best is good enough for our claim!

PE-GL with added oil is used as a self-lubricating, wear-resistant material for the bushings.With an all-round lubrication we rated an inner spiral groove as optimal. Sealing against dirt and water takes over an O-ring.

FEATURES
- vacuum hardened stainless steel sleeves
- stainless
- bushing PE-GL
- spiral groove inside
- sealed with O-rings

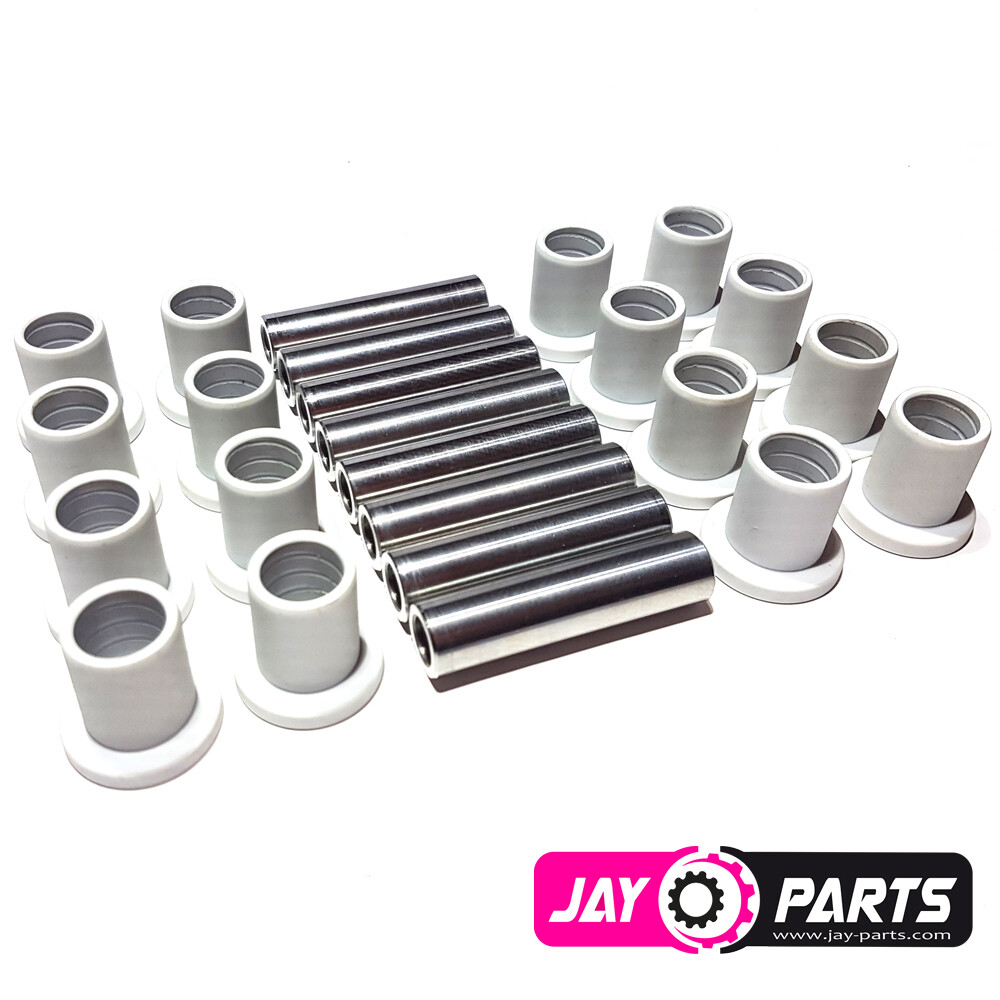

DELIVERY UNIT:
- 8 sleeves
- 16 bushings
The kit includes all parts for the front left and right!

WORKS WITH THE FOLLOWING MODELS:
- Polaris Scrambler 850 & 1000 2013 –
- Polaris Sportsman 850 2010 - 2017
- Polaris Sportsman 1000 2015 – 2017
- Polaris Sportsman Touring 850 2011-
- Polaris Sportsman Touring 1000 2015 - 2017

ATTENTION ON ASSEMBLY
Don´t hit the bushings with a hammer!
Put enough grease in the bushings before installation.
Please fill in grease on the grease press only until a first resistance occurs.
Grease must not ooze out!
