JAY PARTS STEM CLAMP SCRAMBLER SPORTSMAN 850 - 1000 - JP0066

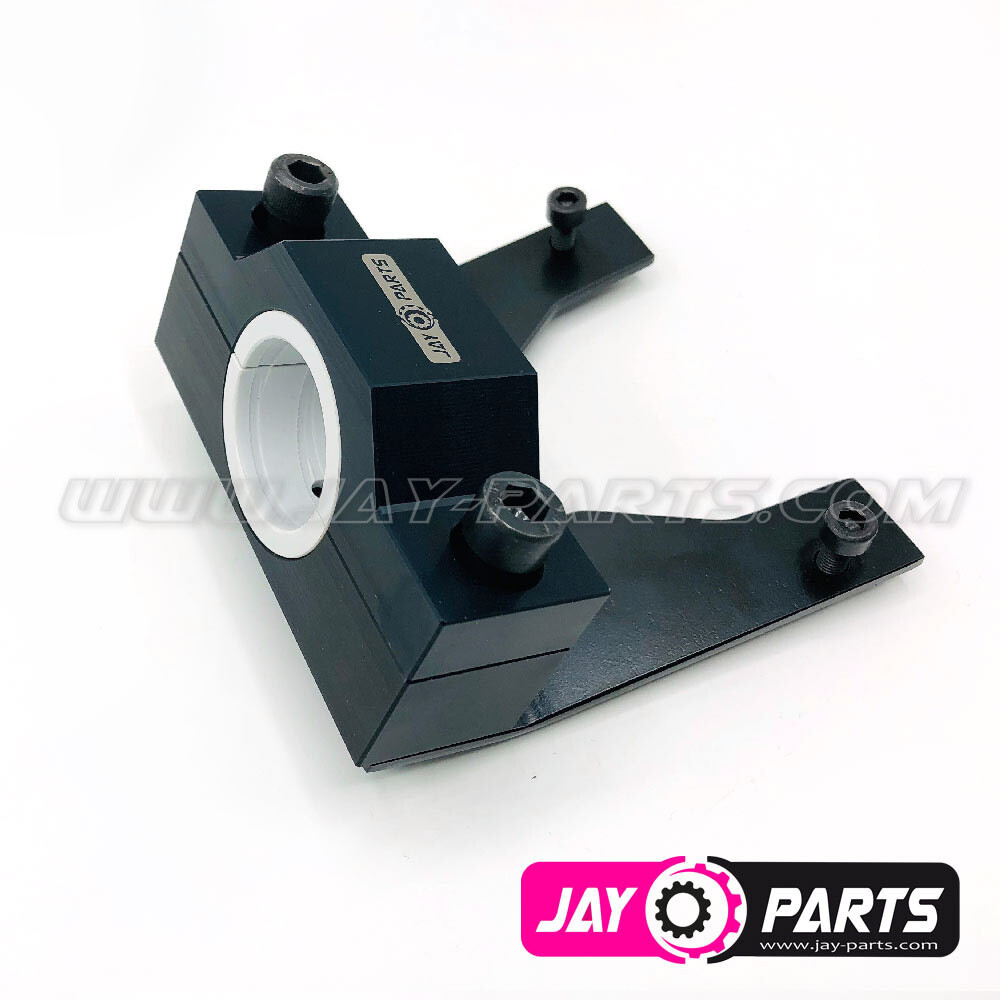

JAY PARTS BEARING CLAMP STEERING

Our combination of a heavy-duty bearing clamp with special bushing made of a highly abrasion-resistant and self-lubricating plastic with a helical groove is simply ingenious. The grease can be optimally distributed over the entire bearing surface via a grease nipple and the ingress of water and dust can be prevented.

To optimize and strengthen the bulkhead (aluminum steering head), we have combined the bushing with the steel reinforcement (4-bolt fitting possible). Thus, it distributes the pressure under excessive load (fall) on the 5-fold surface and minimizes expensive consequential damage.

IMPORTANT

If the bearing surface of the steering column is already worn (metal abrasion is present), our system does not improve either. Here we also recommend a new steering stem.

FEATURES
- aluminum bearing clamp
- highly abrasion-resistant and self-lubricating plastic bushing
- greasing possible
- steel reinforcement 4-fold screw connection possible
- minimized wear
- increased stability and safety
- best possible material and ideas composition

Replaces original part numbers: 5262582 + 5438904

DELIVERY
- bearing clamp
- bushing
- reinforcement plate
- screws & nuts
- grease nipple

WORKS WITH THE FOLLOWING MODELS
Polaris Scrambler 850 / 1000 2013-
Polaris Sportsman 550 / 850 / 1000 2009-

https://www.jay-parts.us/shop/jp0066/
