JAY PARTS SCRAMBLER SPORTSMAN 1000 S 55" BUSHING KIT A-ARMS FRONT – JP0133

JAY PARTS BUSHING & SLEEVES KIT A-ARMS FRONT POLARIS S 55"

The sleeves and seal cups are made of hardened stainless steel, only the best is good enough for our claim!
PE-GL with oil additive was used for the bushings as a wear-resistant material. The O-ring in the stainless steel sealing cap seals against dirt and water.

FEATURES
- Made in Europe
- hardened stainless steel sleeves
- hardened stainless steel seal cups with O-ring
- PE-GL bushings with oil additive

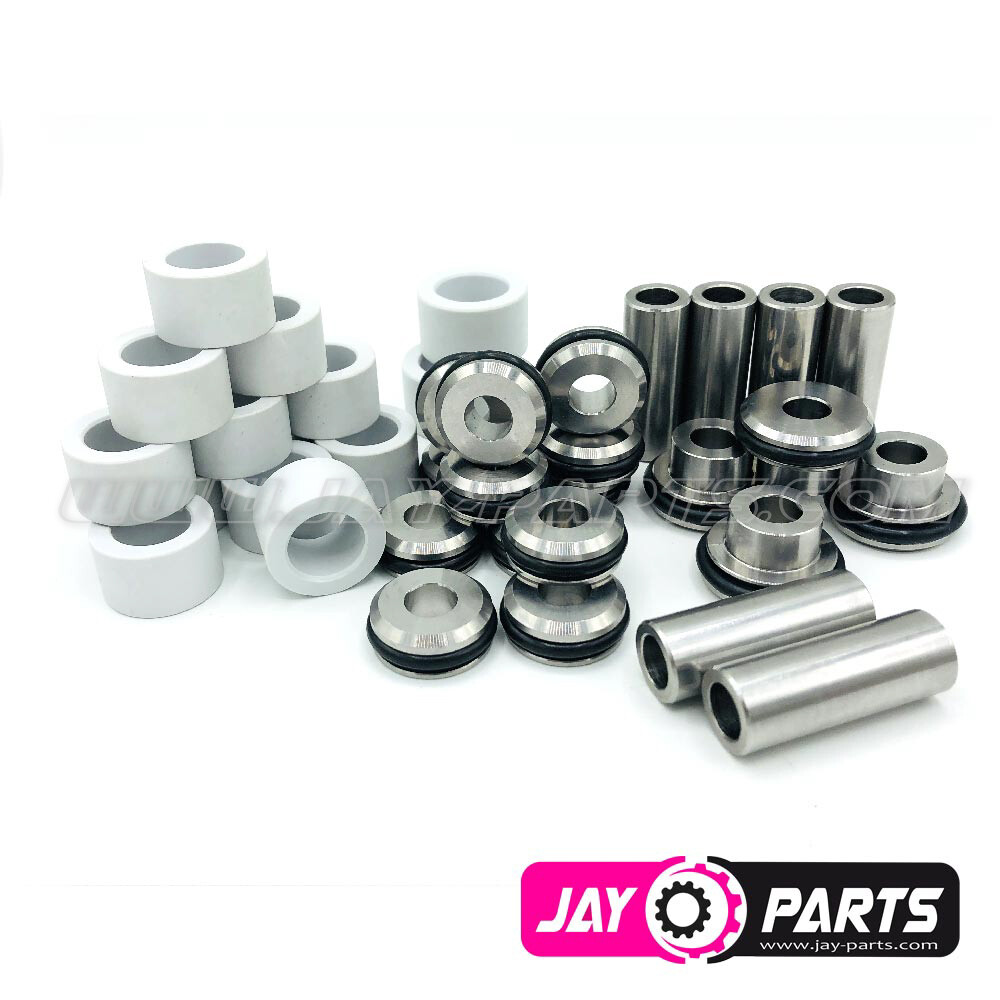

DELIVERY PER KIT
6 sleeves
12 seal cups (pre-assembled with O-rings)
4 sleeves with seal cup (pre-assembled with O-rings)
12 bushings small
2 bushing big

One kit is for both sides for the front on the frame side (left and right).

WORKS WITH THE FOLLOWING MODELS
Polaris Scrambler 1000 S 2020 +
Polaris Sportsman 1000 S 2020 +

ATTENTION ON ASSEMBLY
Don't hit the bushings with a hammer!
Apply a little grease to the screw to avoid corrosion. Grease the O-ring and use the grease on the inside of the bushing extensively.
