ULTRA 4 LEGAL TIRE SPINE RUN-FLAT INSERT

Legal Run-Flat Tire Liner Insert for Ultra 4 and King of the Hammers.

All Ultra 4 / King of the Hammers Legal Tire Spines will come not to exceed 27" tall regardless of Tire Size Used.

Please tell us your wheel and tire size in the notes section at checkout.

Solid 1 piece Spines with no cut, are not end user installable and all tires must be shipped or delivered to Tire Spine for installation. Install Labor Fee per tire will apply. Install information and pricing located here: Install Services

Ultra 4 and King Of the Hammers (same rule book) have a very unique rule as it pertains to Tire Run Flat systems.

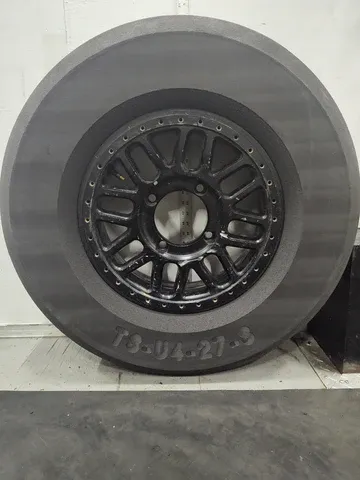

2.18.6 States that Tire Liner type products with a OD of up to 27" are allowed. Since Tire Spines are not a Secondary Inflation Apparatus, and are a Tire Liner type product, they are allowed but cant exceed 27" OD tall. Fortunately, a 27" OD Tire Spine FULLY fits a 29" tall tire and in some cases, a 30" tall tire. Running a bigger tire? No problem! That's what this was designed for! Pictured above is it installed in a 32" Tire as well as a 35" Tire (Blue Bead lock Ring) The Spine has also been ran in 37" UTV tires and 4400 Class 40" tires.

Tire Spine has designed an Ultra 4 & King of the Hammers specific Legal 27" Spine and has been in testing at Ultra 4 races in 2022, 2023, & 2024 with podium proven results.

The Ultra 4 Legal Tire Spine greatly increases sidewall strength, while enabling lower tire pressures for a greater contact patch. The Spine is as much as a preventative device as it is a run flat device.

• Redcard verified and passed at 2023 Famous Reading Rumble July 28th 2023
• Redcard verified and passed at 2023 Legends of the Fall October 27th 2023
• 2024 King of Hammers 4900 UTV race 1st place on a flat for over 44 miles.

Kyle Chaney won the 2024 King of Hammers 4900 UTV race on a flat tire with a Ultra 4 legal Tire Spine inside the tire. He bypassed Pit 2 on the flat and drove it over 44 miles to the podium finish for the win!

Key Expectations:

• Nothing is indestructible, take care of the Spines, they will take care of you
• These are fitting a rule book, not your tire as is normally done.
• Spine wear and tear is increased in Ultra 4 format because of #2 point above
• The Spine can be moved from an old tire to a new tire if wear/tear condition permits
• Expect vibration. Every wheel, every tire, every racer, every track is different. In almost all cases, vibration is very minimal to non existent even exceeding 100mph, but it does, and can happen. Expect it (See point 2 above)
• The bigger the tire you run, the gap between the tire and the spine increases. For example, on a 35" tire, if you compromise the tire it will go down nearly 4" before it ever touches the Spine to hold you up. We recommend running the smallest tire possible, for the best performance and handling when on a flat.
• These are a legal created tool to help get you to the finish line or even to the pit for a faster tire change, and prevent extensive damage while running on a flat tire.
• Tire Spine cannot control every possible scenario in every possible terrain involved with running a run flat liner inside a tire at Ultra 4. The Ultra 4 legal insert, is an absolute best effort solution for the unique Ultra 4 ruleset. Tire Spine assumes no risk and provides no warranty of any form for this Ultra 4 specific product. It's fitting a rulebook, not the tire. Like everything in racing, you are agreeing to use at your own risk.

Tire Spine currently has 2 different possible Ultra 4 Legal Spine Variants. The former 2 piece Ultra 4 Spine is being discontinued as of 10/1/2023. We highly recommend reaching out to us to help choose the best solution to fit your needs.

Solid 1 piece Spines with no cut, are not end user installable and all tires must be shipped or delivered to Tire Spine for installation. Install Labor Fee per tire will apply.
