JAY PARTS FRONT DIFFERENTIAL STAINLESS STEEL PLATE POLARIS SCRAMBLER SPORTSMAN 1000 S 55" - JP0188

JAY PARTS FRONT DIFFERENTIAL REINFORCEMENT PLATE POLARIS SCRAMBLER SPORTSMAN 1000 S 55" - JP0188

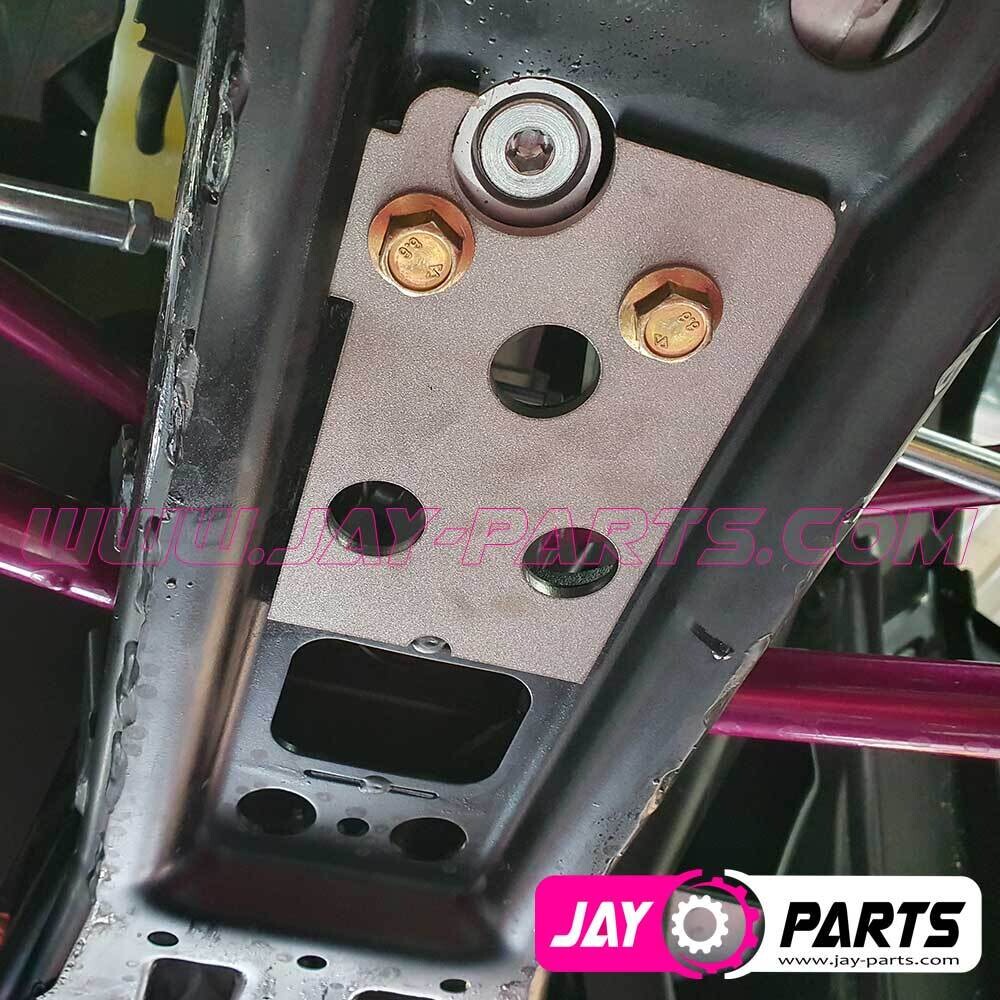

The base plate was developed to reinforce the frame in the area of the front differential.
When used with large wheels, motorsport, or tracks, the base plate rotates in the area of the drain screw(differential).

You can use the reinforcement plate as a screwable reinforcement. However, we recommend welding the JAY PARTS base plate firmly to the frame and thus completely eliminating the weak point. The plate must be painted before/after assembly depending on the use.

ASSEMBLY SCREWED
Differential screw torque 50 NM
Original screws can be kept

RECOMMENDED: ASSEMBLY WELDED
4 mm St355 untreated - easy to weld

WORKS WITH THE FOLLOWING MODELS
Polaris Scrambler 1000 S, 2020 -
Polaris Sportsman 1000 S, 2020 -
