JAY PARTS BUSHING KIT REAR KNUCKLE RANGER ACE RZR - JP0118

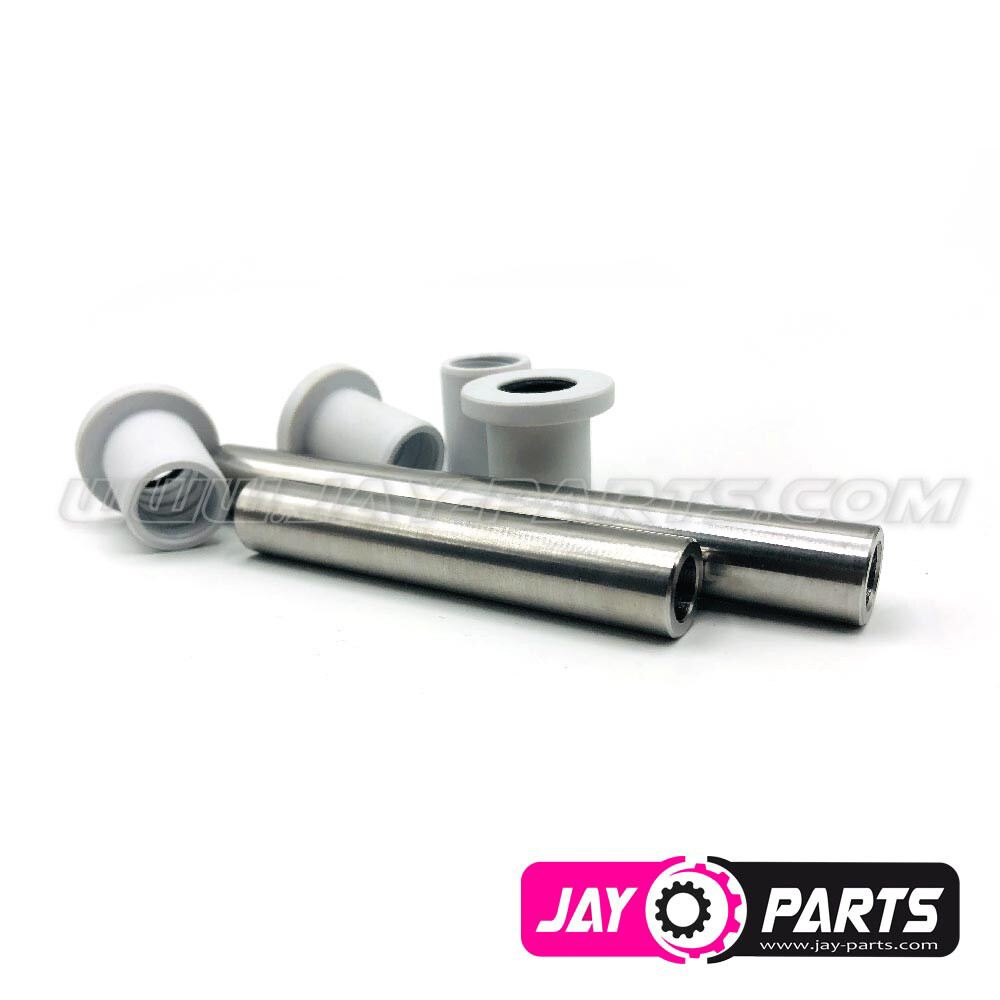

JAY PARTS BUSHING & SLEEVES KIT POLARIS SXS WHEEL SIDE REAR - RANGER, ACE, RZR

The sleeves are made of hardened and ground stainless steel, only the best is good enough for our claim!

PE-GL with added oil is used as a self-lubricating, wear-resistant material for the bushings. With all-around lubrication, we rated an inner spiral groove as optimal. Sealing against dirt and water takes over an O-ring.

FEATURES
- hardened stainless steel sleeves
- stainless
- bushing PE-GL
- spiral groove inside
- sealed with O-rings

DELIVERY UNIT:
- 2 sleeves
- 4 bushes

The kit includes all parts for the wheel side rear left or right!
You need 2 kits for one complete vehicle.

WORKS WITH THE FOLLOWING MODELS:
- Polaris Ranger ETX + 570 all 2014 – 2020
- Ranger 900 all 2013 - 2019
- Ranger DIESEL 1000 2015 – 2019
- Ranger 1000 all 2017
- ACE 325 + 570 + XC900
- RZR 570 2013 – 2020

ATTENTION ON ASSEMBLY
Don´t hit the bushings with a hammer!
Put enough grease in the bushings before installation.
Please fill in grease on the grease press only until a first resistance occurs.
Grease must not ooze out!
