JAY PARTS BUSHING KIT REAR A-ARMS POLARIS SPORTSMAN 1000 - JP0124

JAY PARTS bushing & sleeves kit A-Arms rear Polaris Sportsman 1000 (2018- )

The sleeves and seal cups are made of hardened stainless steel, only the best is good enough for our claim!
PE-GL with oil additive was used for the bushings as a wear-resistant material. The O-ring in the stainless steel sealing cap seals against dirt and water.

FEATURES
- Made in Europe
- hardened stainless steel sleeves
- hardened stainless steel seal cups with O-ring
- PE-GL bushings with oil additive

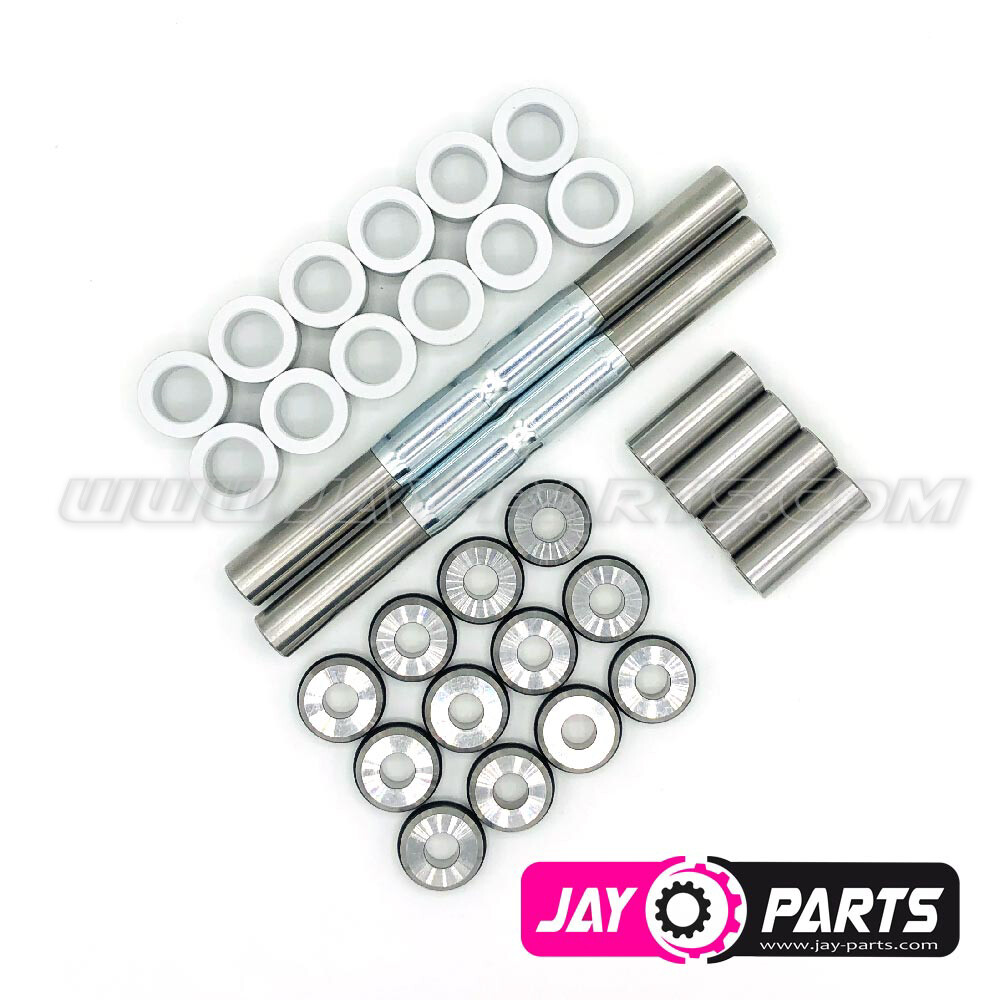

DELIVERY PER KIT
4 sleeves short
2 sleeves long
12 bushings
12 seal cups (pre-assembled with O-rings)

One kit is for both sides for the rear on the frame side (left and right).

WORKS WITH THE FOLLOWING MODELS
Polaris Sportsman 1000 2018-
Polaris Sportsman Touring 1000 2019-

ATTENTION ON ASSEMBLY
Don't hit the bushings with a hammer!
Apply a little grease to the screw to avoid corrosion. Grease the O-ring and use the grease on the inside of the bushing extensively.

RECOMMENDATION
We recommend using water-resistant grease when installing
