JAY PARTS BUSHING & SLEEVES KIT A-ARMS FRONT CAN AM X3 & TRAIL – JP0052

JAY PARTS BUSHING & SLEEVES KIT A- ARM FRONT

Can Am X3 Turbo, Can Am X3 4Max, Can Am Trail
The sleeves are made of hardened stainless steel, only the best is good enough for our claim!

For the bushings we used PE-GL with added oil as a self-lubricating, wear-resistant material. With an all-round lubrication we rated an inner spiral groove as optimal. Sealing against dirt and water takes over an O-ring.

- Made in Europe
- hardened stainless steel sleeves
- stainless
- PE-GL bushings with oil additive
- 3x spiral groove inside
- sealed with O-rings

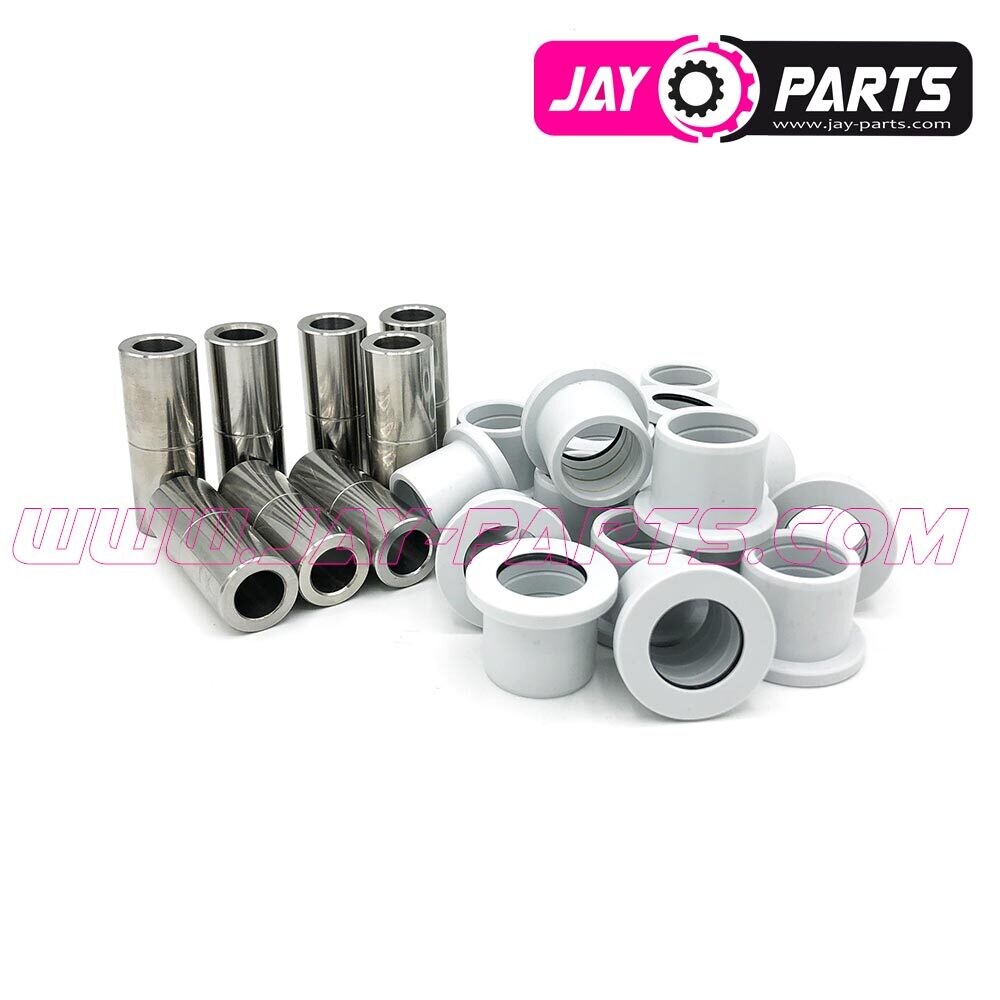

DELIVERY PER KIT
- 8 sleeves
- 16 bushings (pre-assembled with O-rings)

One Kit is for both sides front (left and right)!
Replaces part numbers: 706202257 + 706201659

WORKS WITH THE FOLLOWING MODELS
Can Am X3 TURBO 17 +
Can Am X3 4Max 17 +
Can Am Trail 18 -21 (Before January 17th 2021)

ATTENTION ON ASSEMBLY
Don´t hit the bushings with a hammer!
Put enough grease in the bushings before installation.
Please fill in grease on the grease press only until a first resistance occurs.
Grease must not ooze out!

RECOMMENDATION
We recommend using water-resistant grease when installing
