JAY PARTS BUSHING & SLEEVES KIT A-ARMS CAN AM RENEGADE OUTLANDER MAVERICK DEFENDER
Product Details
UPC: JP0149
Brand: Jay Parts
The sleeves are made of hardened stainless steel, only the best is good enough for our claim!
The bushings are made of PE-GL with oil additive as a self-lubricating wear-resistant material which are provided with a inner spiral groove inside. Sealing against dirt and water takes over an O-ring.
FEATURES
- hardened stainless steel
- bushings PE-GL with oil additive and inner spiral groove
- sealed with O-rings
DELIVERY

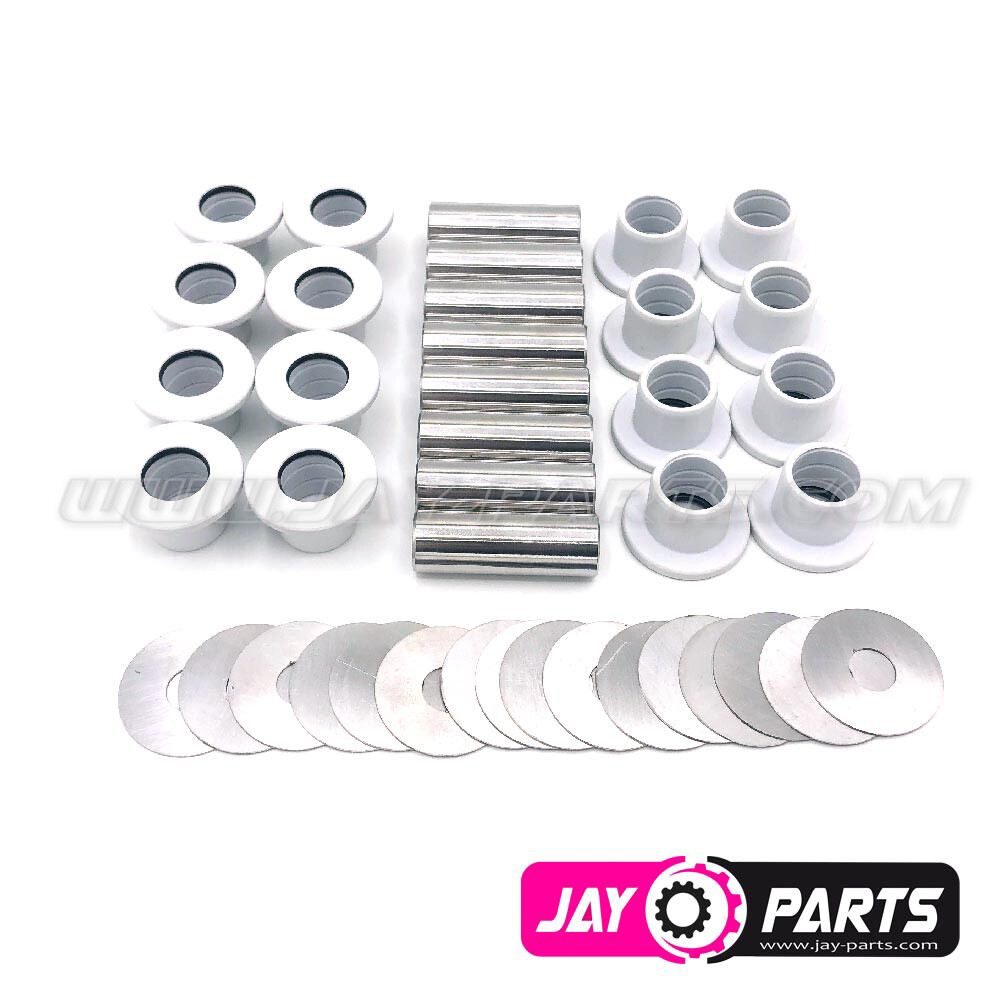

8 sleeves
16 bushings
16 washers
1 set is for one vehicle left and right side.
REPLACES part number: 703500875, JP0084
RECOMMENDATION
Always swap both sides, as there is a big difference in quality compared to the original spare parts.
For installation, we recommend Bel-Ray Waterproof Grease. The grease you can also use to lubricate your vehicle and you can find it in our shop too.
WORKS WITH THE FOLLOWING MODELS:
ATV
Outlander 450/500/570/650/800/850/ 1000 all models 2012 –
Outlander MAX 450/500/570/650/800/850/ 1000 all models 2012 –
Outlander 6X6 – 450/650/1000 all models 2016 –
Renegade 500/570/650/800/850/1000 all models 2012 –
UTV oder SXS
Commander 800/1000 2012 – 2021
Defender MAX HD5/HD8/HD10 2017 –
Defender HD5/HD8/HD10 2018 –
Traxter HD5/HD8/HD10 2016 –
Traxter MAX HD8/HD10 2017 –
Maverick 800/1000 2013 -2020
Maverick Trail 800 2018 – 2021
Maverick Sport 1000R 2018 – 2021
Maverick Sport MAX 1000R 2018 – 2021
ATTENTION ON ASSEMBLY
The bushings fit exactly and the O-rings seal up against water and mud and furthermore the grease doesn´t leak! Don´t hit with a hammer on the bushings. Please be sure that there is enough grease in the bushings before installation. After use when greasing, please fill in grease on the grease press only until a first resistance occurs.
