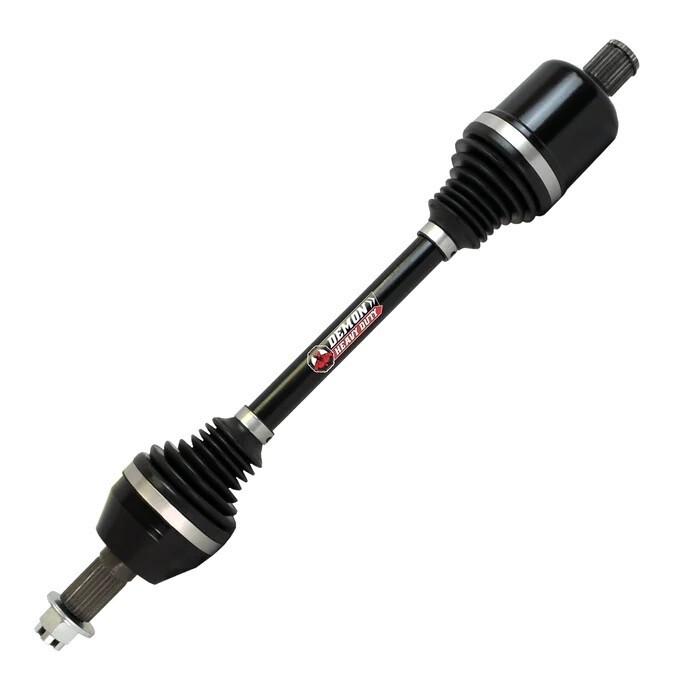

DEMON POWERSPORTS HD AXLE PAXL-6097HD – POLARIS 1000 S (55″) - FRONT

DEMON POWERSPORTS Heavy Duty Axle FRONT

for Polaris Scrambler 1000 S (55″) & Sportsman 1000 S (55″)

• 15% – 20% increase in diameter compared to the regular axle
• Inner cage made up of 4340 Chromoly steel
• Dual heat treated high strength Chromoly steel shaft
• Maximum diameter of the axle and CV-joint (10%-15% increased)
• Re-Engineered Cage Design
• Larger swing angles up to 40 degrees
• High quality Moly grease
• TPEE boot

FITMENT:

REPLACES ORIGINAL PART NUMBER: 1334202

Please check Model/Year!
DEMON POWERSPORTS Heavy Duty Axles for on-road and off-road use where an original axle may wear out prematurely or break due to extreme use. These axles are made with reinforced components and are up to 25% stronger than the OEM axles. The Heavy Duty axles can be mounted on the ATV without modification.

It is recommended to always change the axles in pairs.

Through years of research and development Demon Powersports has developed an axle that doesn’t burn a hole in your pocket and adheres to the highest quality standards. These axles are bigger, beefier, and stronger.

Demon Heavy Duty Axles are built using larger CV joints and shafts, paired with our proprietary dual heat treatment process, and 4340 Chromoly Steel inner CV cage gives these axles the edge it needs for superior strength and longevity. These axles also utilize a unique double plunge design which allows them to achieve higher articulation angles approximately, the axles are designed to slide on the bar splines allowing for 1.5 inches of travel and 40° articulation over the terrain on the inboard joint. The outboard joint can travel 0.5inches and swing from 45°-47° depending on the model. The Demon heavy-duty axles are equipped The TPEE (Thermoplastic polyester elastomer) boots which are stronger, stiffer, more fatigue resistant, puncture-resistant, and more temperature resistant than a standard OEM boot. Demon Powersports axles use molybdenum grease to provide low friction and smooth motion. Trust in Demon Heavy Duty Axles to keep you riding!

If you need to handle the hardest terrains for racing in Desert, Sand, Mud, Rock and Short Courses or Mud you need the Demon Powersports Heavy Duty X-TREME line which are an upgrade from the HD line - the strongest axle to date from Demon Powersports!

READY FOR INSTALLATION

The Demon Powersports HEAVY DUTY axles can be mounted on the ATV / UTV without modification.
It is recommended to always exchange the axles in pairs.
