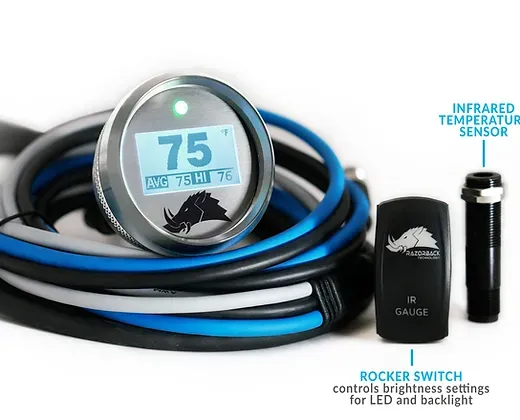

3.2 Dimmable Infrared Belt Temp Gauge

The 3.2 Dimmable Gauge is the latest & greatest version of our patented, thermally compensated, infrared belt temperature gauge design. This gauge allows for real-time monitoring of belt surface temperature, and features multicolor LED temperature alerts. On the anti-glare LCD screen you'll be able to easily monitor current, average, high belt temperatures and the speed percentage of the Razorback Cooling Fan.

Our added rocker switch now allows you to dim both the LED light as well as your LCD screen. Cycle between 5 levels of brightness to suit your riding needs! You will also have the ability to customize the settings of gauge by holding in your rocker switch for 2 seconds. NEW Gauge Menu Features!

Our thermally compensated infrared sensors are medical grade, and are manufactured to withstand the harsh environments found in motorsports.

Our gauges are water resistant to IP65 and IP67 on the sensor and connections.

***Mount sold separately***

This gauge is available with different lengths of sensor cabling (dependent on vehicle make/model), outlined here. A 15ft is for a 4 seater SXS and 12ft is for a 2 seater SXS while the 5ft is for snowmobiles:

15 ft. sensor cable: Can-Am X3 Max, Polaris RZR 4, Arctic Cat/Textron Offroad Wildcat (4dr.), Speed El Jefe, Kawasaki KRX and Teryx

12 ft. sensor cable: Can-Am X3, Polaris RZR, Arctic Cat/Textron Offroad Wildcat (2dr.)Can-Am Maverick/Commander (4dr.), Polaris RS1, Kawasaki KRX and Teryx, Speed El Diablo

5 ft. sensor cable: Can-Am Maverick/Commander (2dr.), All ATVs and Snowmobiles
